Vibration dampener for effective crane protection
PURE PHYSICS
Effective crane protection against
dangerous vibrations from vibro hammers
Vibrations from vibro hammers are harmful to people, materials and the environment
"One day of work, one week of maintenance work. This is the everyday life of many drivers when piling with vibro hammers."
Vibration dampener for Vibro Hammer are the solution against harmful vibrations during pulling piles.
The advantages of vibration dampeners:
- Reduction of harmful vibrations through two-stage vibration damping
- highly efficient crane protection
- lower costs through less downtime and maintenance work
Vibration damper models at a glance
Vibration dampener in different sizes for different requirements
Vibration dampener for piling work are available in various sizes and designs with a maximum pulling force between 12t and 120t.
| Data | VSD 20 | VSD 30 | VSD 70 | VSD 130 | VSD 185 | VSD 1200 |
|---|---|---|---|---|---|---|
| Manufacturer type | SD 20 | SD 30 | SD 70 | SD 130 | SD 185 | SD 1200 |
| Maximum permissible pulling force (kN) | 120 | 160 | 250 | 500 | 800* | 1,200 |
| Self-weight (kg) | 155 | 200 | 325 | 750 | 1,600 | 2,663 |
| Height (mm) | 1,070 | 1,090 | 1,550 | 2,100 | 2,370 | 3,270 |
| Width (mm) | 670 | 730 | 840 | 1,060 | 1,070* | 1,540 |
| Depth (mm) | 320 | 380 | 480 | 600 | 1,250 | 1,000 |
Source: TÜNKERS, SD 20–1200 operating manual, 6 March 2026, page 11. Maximum permissible pulling force includes dynamic peak loads. The dampener’s mass contributes to the hook load. Select equipment using its specific manufacturer documentation and a competent lifting assessment.
* The current manual lists SD 185 at 800 kN and 1,070 mm wide; older documents list 850 kN and 1,170 mm. Confirm the applicable specification with TÜNKERS for the supplied unit. SD 1200 dimensions and mass above follow the March 2026 manual.
Technical specifications - vibration dampeners
Powerful vibration dampeners for vibro hammers:
Maximum protection for mobile cranes
Select an image to explore the gallery.
Designed for maximum efficiency and durability, vibration dampeners for vibro hammers offer outstanding protection against harmful vibrations. These dampeners not only protect people and machines, but also help protect the environment.

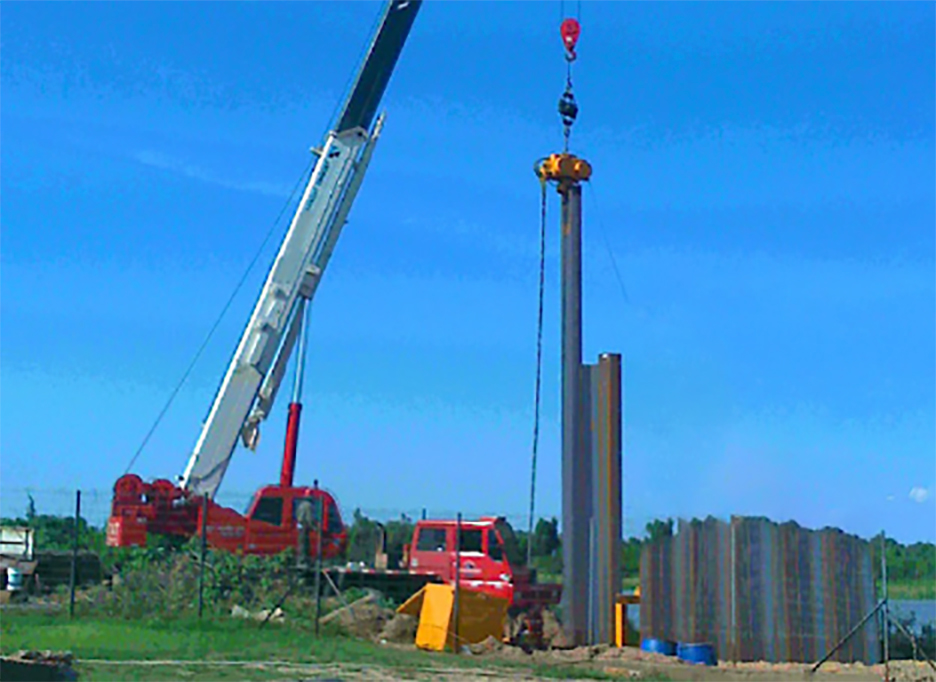

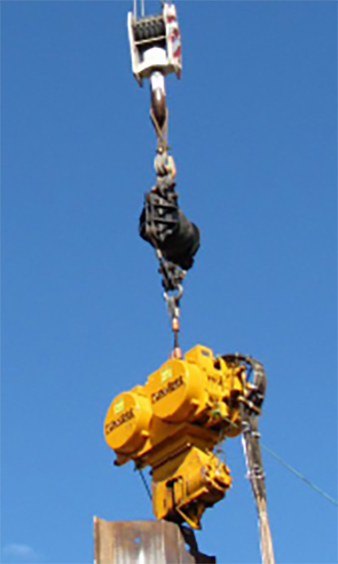

The vibration dampener reduces the high dynamic alternating forces generated by the piling and pulling device. With vibration dampeners you can reduce the vibrations of vibro hammers by over 90%. This prevents damage to the telescopic crane used as the carrier device and significantly reduces wear on critical crane components such as the boom. This leads to lower maintenance costs and extends the intervals between maintenance, which ultimately reduces operating costs.
Less vibration means less wear and damage to your cranes. Our vibration dampeners ensure a longer lifespan for your equipment and contribute to a more stable and comfortable working environment.
By effectively reducing vibrations, noise pollution and stress for crane operators and the environment are significantly reduced, resulting in a more pleasant and safer working environment.
Further advantages:

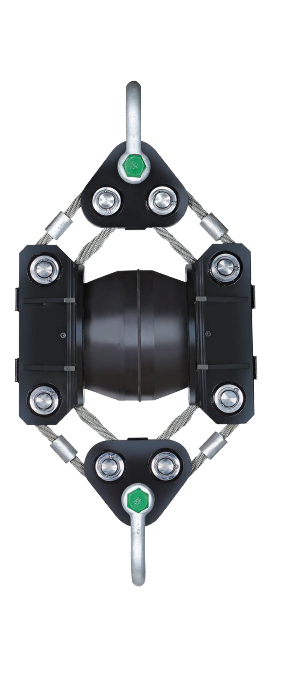

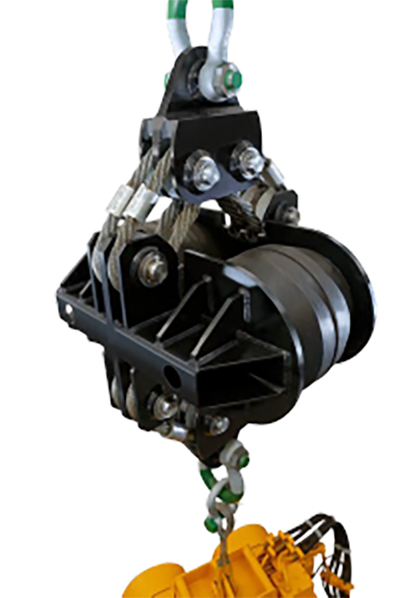

- Absolute safety even under heavy use is guaranteed by a double-sided suspension, the special shackles and the self-centering, non-bending hollow rubber spring.
- Versatile use for ramming and pulling is a given.
- The vibration damper is also ideal for transporting goods that are sensitive to vibrations.
Optimised for efficiency and durability: Vibration dampers for vibro hammers for cranes
Vibration dampers for vibro hammers play a crucial role in the safe and efficient operation of cranes. crane-protection.com offers innovative vibration dampers that offer numerous benefits. Reducing harmful vibrations extends the life of the equipment and increases safety for operators and the environment. These benefits help improve overall efficiency and versatility on construction sites and make vibration dampers for vibro hammers a cost-effective and essential investment for crane operators and crane rental companies. Discover how our vibration dampers can improve your crane operation.
